Product Details:
|
| Model: | ECOH005A Electric Ophthalmic Operation Table | Length(mm): | 2100mm |
|---|---|---|---|
| Width(mm):: | 500mm | Table Height(mm):: | From 750 To 1000mm |
| Stroke(mm):: | More Than 250mm Free To Lift, Lock | Advantage: | Foot Plate Can Be 90° On The Leg Plate And Can Be Removed. |
| Platform Horizontal Movement(mm):: | More Than 400mm | Leg Plate Spilt:: | More Than 90° Detachable |
| Power:: | AC 220V ± 10%, 50HZ | Safe Working Load(Kg):: | More Than135Kg |
| Table Top Reach(mm):: | Table Top Reaches 400mm | Material: | SUS304 Stainless Steel |
| High Light: | 500mm Width Ophthalmic Operation Table,SUS304 Ophthalmic Operation Table,24VDC Ophthalmic Operation Table |
||

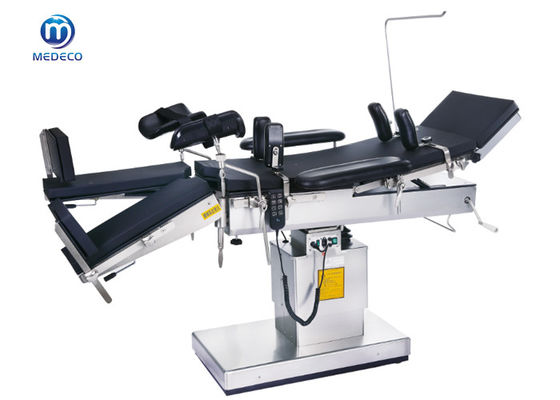

New Design Stainless Steel Surgical Technical Electric Ophthalmic Operation Table
Electric Operation Table Suitability of ECOH005A:
The Advanced ECOH005A Operating table is suitable for general surgical procedures including: chest, abdomen, nose, throat, gynecology and obstetrics, urology, orthopedics department. Advanced ECOH005A is used in Operating Rooms, and Surgical Center.
• Remote control easy operation.
• Stainless steel construction.
• Accessory rails, both sides.
• Power On/O switch.
• Power On/O status indicator light.
• Adjustable height.
• Trendelenburg and reverse Trendelenburg adjustment.
• Lateral tilt adjustment, right and left.
• Electric central brake.
• Back section Up and Down.
• Leg section Up and Down.
• Leg plates horizontal opening.
• Adjustable head section.
• One Table cushion set, can be removed for easy cleaning & disinfecting
• X-Ray images.
• Kidney Elevation
• Power Supply: AC 220V ± 10%, 50HZ
• Meet ISO 13485 Quality Standard.
Main Specification Of ECOH005A Electric Operation Table:
| Length: | 2100mm | Width: | 500 mm |
| Table height: | 750 ~ 1000mm | Stroke: | ≥ 250mm free to lift, lock |
| Forward tilt: | ≥25° | backward tilt: | ≥25° |
| Left and right tilt: | ≥15° | head plate: | up ≥45° |
| head plate: | down ≥90° | back plate: | ≥45° |
| Waist rise lifting: | ≥80mm | Platform Horizontal movement: | ≥400mm |
| Power: | AC 220V ± 10%, 50HZ | Safe working load: | ≥135kg |
| Leg plate: | down ≥90° | Leg plate spilt: | ≥90° detachable |
| Foot plate can be 90° on the leg plate and can be removed. | |||
FAQ:
Q1 : Whats your MOQ ?
Our MOQ is one psc, welcome to trial order before our formal cooperation.
Q2:If your company support OEM ?
Yes, we support OEM, You just sent me our your logo and requirement, we will print th logo in the products and nameplate.
Q3: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
