Product Details:
|
| Model No.: | DT-12E(S) | Length: | 1090mm |
|---|---|---|---|
| Width: | 500mm | Height: | 690mm-1090mm |
| Specification: | CE | Package: | Standard Wooded Case |
| Horizontal Sliding: | 340mm | Kidney Bridge Elevation: | 100mm |
| High Light: | 1090mm medical operation table,100mm medical operating table,500mm medical operation table |
||

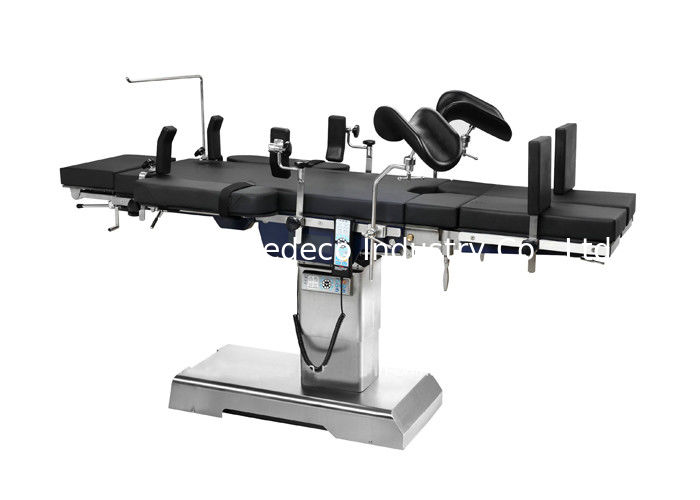

Medical equipment Stable electric hydraulic operation table
Features of Medical electric hydraulic operation table:
This electric hydraulic operation table has 24V battery that meets the operating demands for one week,better ensure the table work under safe voltage.
Opeartion table use automatically lockable remote control in case of wrong operation.
Large-scale elevation makes this operation table easier for C-arm fluoroscopy examination .
With built-in kidney bridge.suits for kidney operation .
One button reposition function,designed and made specially for X-raying and C-arm use.
Key parts,such as electrical pump and electromagnetic valve,adopted imported products from Taiwan.
Technical Data:
| Model | Length | Width | Tabletop Elevation |
| DT-12E(S) | 1090mm | 500mm | 690mm~1090mm |
| Movements | Model: DT-12E(S) | |
| Tabletop trendelenburg | Reverse trendelenburg | 28º |
| trendelenburg | 28º | |
| Lateral Tilt(left and right) | 18º | |
| Head plate | Up | 60º |
| Down | 85º | |
| Back plate | Up | 85º |
| Down | 10º | |
| Leg plate | Up | 15º |
| Down | 90º | |
| Outward | 90º | |
| Kidney Bridge Elevation | 100mm | |
| Horizontal sliding | 340mm | |
| sthetic Screen | 1 piece |
| Shoulder support | 1 pair |
| Body support | 1 pair |
| Arm board | 1 pair |
| Leg support | 1 pair |
| Foot plate | 1 pair |
| Long fixing clamp | 2 pieces |
| Fxing clamp | 7 piece |
