Product Details:
|
| Model: | Me500/500 LED Surgical Lamp | IIIuminance: | 40,000-120,000lux |
|---|---|---|---|
| Color Index Ra: | 95 | Color Temperature: | 3000±300K-5000±300K |
| Light Depth L1+L2(mm): | >1000 | Service Life Led Bulb: | >50,000hours |
| Diameter Of Lamp Housing: | 500mm | Power (W): | 48W |
| Type: | Germany OSRAM LED Bulb | Delivery: | 2 Week After Get Payment |
| High Light: | 40000 Lux Surgical Operating Light,500mm Double Dome OT Light,48W Surgical OT Light |
||

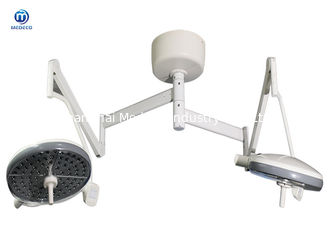

Me500/500 Medical Equipment Union Tech Double Dome LED Surgical Light Germany LED Light sources

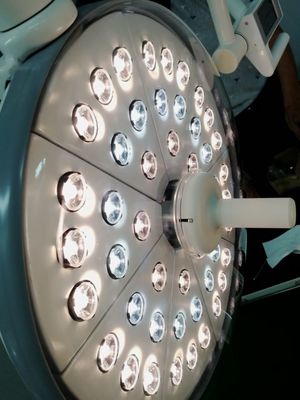

Ergonomic design,streamilined design meets the requiremetns of modernization in laminar flow operation situation.The thickness of the lamp is 3 cm,The thin and light design makes it more convenient for doctors to operate.Using Germany Ondal Square Arm, meet the all kinds of operation situation.The led bulb foreach head is 48cs, and the power for each head is 48W, One lamp bead is 1W, and each lamp bead can be replaced independently, which is truly convenient, energy-saving and environmentally friendly.
Configuration for 500/500 Ceiling Type LED Operating Lamp:
1. Round Bottom Falun Plate Light Base
2. The lamp balance arm standard using Chinese Domestic Round arm
3. Two pcs sterilizer handling for one lamp head
Option: Germany Square Arm, Chinese Square Arm.
3. German Orsam bulb and lamp-socket
4. As a flexible lighting solution, halogen light can be easily changed when another burned.
5. Double control
6. HD Camera System
7. One Led Operation light head and one Chinese Round Arm.
LED OPERATION LIGHT CONFIGURATIONS
LED 700/700(700mm+700mm Lamp Head)
LED700/500(700mm+550mm Lamp Head)
LED 500/500(700mm+550mm Lamp Head)
LED 700 (700mm Lamp Head)
LED 500 (550mm Lamp Head)
Specification for Me 500/500 Ceiling Type LED Operating Lamp :
| echnical specifications for lights | LED500 LED OT lamp | LED500 |
| Illumination(Lux) | 40,000~120,000 (8 levels) | 40,000~120,000 (8 levels) |
| Focusable light-field size (mm) | 150~300 | 150~300 |
| Colour temperature | 3500 4000 4500 5000 | 3500 4000 4500 5000 |
| Light Depth L1+L2(mm) | >1000 | >1000 |
| Colour Index Ra | >95 | >95 |
| Power Supply | 110~240V 50/60Hz | 110~240V 50/60Hz |
| Effective bulb service life | >50,000h | >50,000h |
| Diameter of lamp housing | 500mm | 500mm |
| Power (W) | 48W | 48W |
| Installation height (Ceiling Type) | 280-320 cm | 280-320 cm |
| Endoscopy model | Abailable | Abailable |
Shanghai Medeco one excellent medical equipment manufacturer, offering a combination of medical equipment to distributor, clinic, hospitals and medical institutions around the globe. We specializes in Operating lamp, LED Shadowless Lamp, LED Examination lamp, Manual Operating table, Electric Operating Table, Obstetrics & Gynecology Table, Examination Table, Medical pendant ,Hospital furniture and much more.
Shanghai MEDECO Industry Co.,Ltd. established the manufacturing and R&D base for medical equipment, and has built the brand of “MEDECO” and “Mermaid” successfully. We gather a large number of high-quality technology professionals and production workers, establishe and improve the enterprise management and quality assurance system, complete with its own design, the ability of independent production.
