Product Details:
|
| Model: | Me 700/700 LED Surgical Lamp | Application: | Hospital,Clinic |
|---|---|---|---|
| Certification: | CE,ISO | IIIuminace: | 40,000-180,000 |
| Light Depth: | >1000mm | Installation Height: | 280-320cm |
| Class: | Class II | Type: | LED Light Source |
| Delivery TIme: | 1 Week After Received Payment | Shipping Way: | By Sea Or Air |
| High Light: | 650mm Surgical Operating Light,650mm ceiling mounted surgical light,4000k Surgical Operating Light |
||

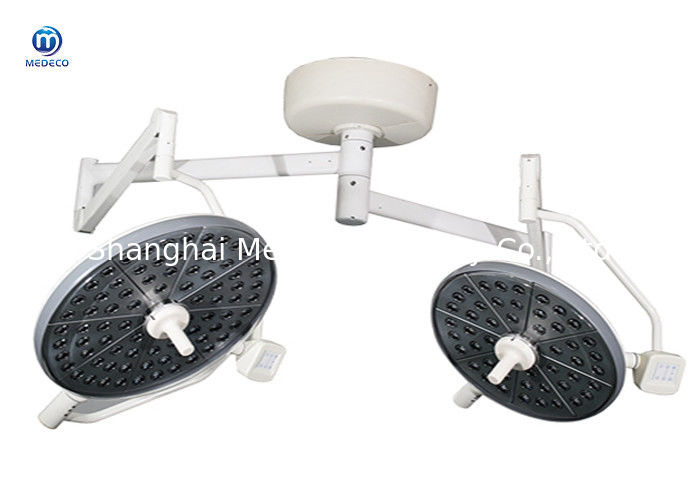

Ceiling-mounted LED Surgical Light Shadowless Hospital Equipment
ME 700/700 LED Surgical Lamp Description:
Our surgical light solution offer high quality surgical light LEDs, not only enough brightness but also more nature color. Our ME series LED light can reach up to 180,000lux with color temperature from 3500k-5000k. Our LED light provide 3 selectable steps of color temperature. Orthopedic surgeons utilize the highest color temperature which represents the closest to bone. The lowest color temperature setting can be best utilized by plastic surgeons for dealing with skin and tissue.
LED 700/700 is used imported Germany LED shadowless light source,which could support more than 5000 hours of service life, an LED provides illumination many times longer than conventional lighting.In addition,each LED can be replaced individually and on site.
The relation between light body and light field diameter guarantees an optimum illumination of the OT field in terms of area and depth.
The perfect design reduce the airflow surface beneath the ventilated ceiling, Flow- optimized light head and reduced surface temperature minimise turbulence in laminar air flow.Flow- optimized light head and reduced surface temperature minimize turbulence in laminar air flow.
We use Chinese round arm as the standard. We also provide Chinese square arm and Germany Ondal Square arm.
Tag: Surgical Operating Light; Ceiling mounted surgical light; Medical Lights;
The Parameter for LED 700/700 Operating Lamp:
| Technical specifications for lights | LED700 | LED700 |
| Illumination(Lux) | 40,000~160,000 (8 levels) | 40,000~160,000 (8 levels) |
| Focusable light-field size (mm) | 150~300 | 150~300 |
| Colour temperature | 3500 4000 4500 5000 | 3500 4000 4500 5000 |
| Light Depth L1+L2(mm) | >1000 | >1000 |
| Colour Index Ra | >95 | >95 |
| Power Supply | 110~240V 50/60Hz | 110~240V 50/60Hz |
| Effective bulb service life | >50,000h | >50,000h |
| Diameter of lamp housing | 650mm | 650mm |
| Power (W) | 80 | 80 |
| Installation height (Ceiling Type) | 280-320 cm | 280-320 cm |
| Endoscopy model | Available | Available |
