Product Details:
|
| Model No.: | ECOH003-C Electric Operation Table | Length: | 2125mm |
|---|---|---|---|
| Width: | 550mm | Height: | 600mm-950mm |
| Package: | 138×70×86cm 325/260kg | Platform Horizontal Movement: | ≥400mm |
| Waist Plate Liffting: | ≥80mm | Votage: | 110~230V 50/60Hz |
| Certification: | CE ISO Certification | Brand: | Medeco |
| Origin: | China | ||
| High Light: | 2125mm Hydraulic Operating Table,550mm operation theatre table,950mm Hydraulic Operating Table |
||

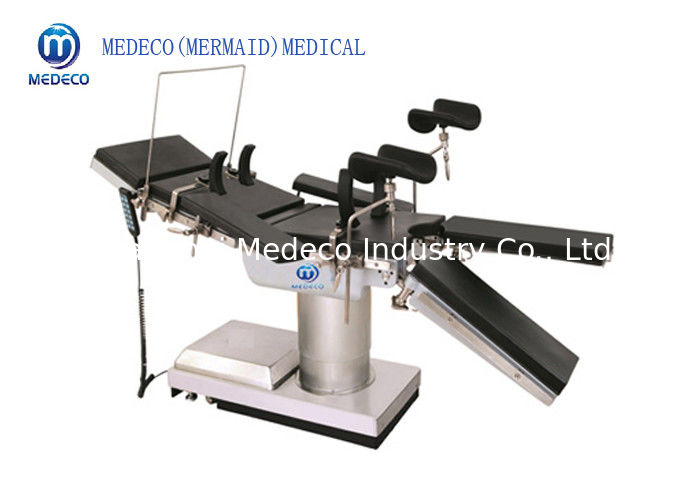

Stable Electic Hydraulic Operating Table OT Bed Doctor Examination Surgery Table
Electric Hydraulic Operating Table Description:
Electric Hydraulic operating table Multifunction Hospital Medical MEDS99C (ECOH003) is developed independently by our company wity innovativ and advanced technologies.
The table is a compehesive one with high-quality and multi-purposes,which takes the leading position in the domestic market.The table can be used in almost all kinds of operations by means of speical design.The bedtop can be moved vertically and rotated horizontally.
The tableboard is made from high-intensity synthesis panel. X-Ray transmissive, easy adjustment and easy use of C-arm make the table can be more capable for any operation.
The operating table is controlled by Control Circuit, which is easy operation, low noise,reliable performance.
Electric Hydraulic Operating Table Main Usage&Structure
Main Usage: Electric Operating Table can be operated for Clinical use.
Structure:Operating Table consists of two parts including mechanical and electro-hydraulic control system.
Depending on manual operation,the product can meet the requirement of posture in clinical operation.
Tag: Ophthalmic Operating Table; Gynecology examination Table; Hydraulic Operation Table
Medical Table Patameter:
| Model | Length | Width | Table height | Stroke |
| MEDS99C | 2125mm | 550mm | 600mm~950mm |
≥350mm |
| Movements | Model:99C | |
| Forward tilt | ≥20º | |
| Backward tilt | ≥15º | |
| Lateral Tilt(left and right) | ≥15º | |
| Head plate | Up | ≥45º |
| Down | ≥90º | |
| Back plate | Up | ≥85º |
| Down | ≥40º | |
| Leg plate | Down | ≥90º |
| spilt | ≥90º | |
| Waist plate liffting | ≥80mm | |
| Platform Horizontal movement | ≥400mm | |
| Numberal order | Name of accessories | Number | |
| 1 | Head section | 1 | |
| 2 | Anaesthetic Screen | 1 | |
| 3 | Body support | Large 1.smart 1 | |
| 4 | Shoulder support | 2 | |
| 5 | Arm rest | 2 | |
| 6 | Knee crutch | 2 | |
| 7 | Cushion | 1 | |
| 8 | Body Restraint Strap | 1 | Optional |
| 9 | foot plate | 2 | Optional |
