Product Details:
|
| Model No.: | DT-12E LUXURY | Length: | ≥2100mm |
|---|---|---|---|
| Width: | 550mm | Tabletop Lowest Height: | ≤550mm |
| Trendelenburg: | ≥35º | Lateral Tilt(left And Right): | ≥25º |
| Specification: | CE | Load Capacity: | 350kg |
| Brand: | Medeco | Footplate(up/down/outward): | ≥90º |
| Origin: | China | Package: | Standard |
| High Light: | 2100mm Electric Operating Table,550mm electric operating table,Load 350kg Electric OT Table |
||

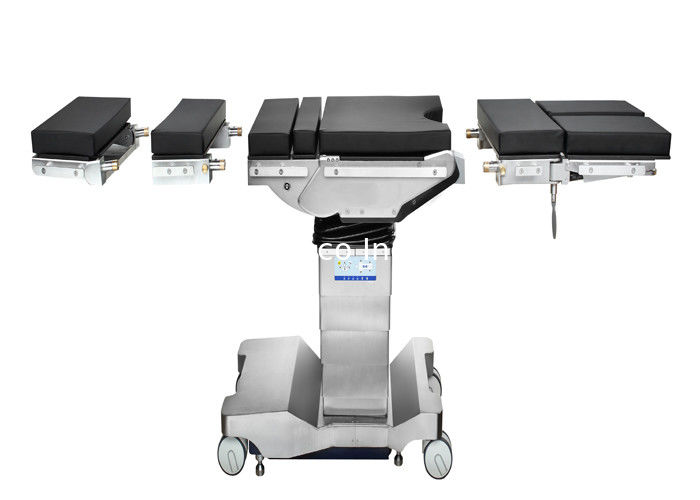

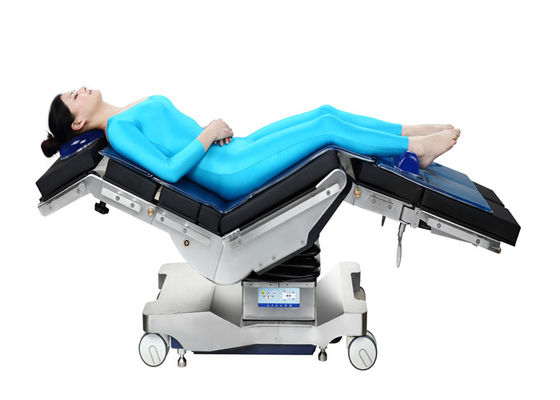

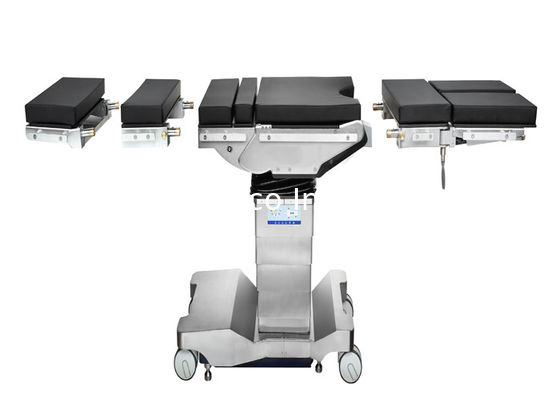

Double Control System Electric Hydraulic Operating Table Flexible Patient Position multi-functional operating table
Features of Electric Hydraulic Operating Table:
Description of Electric Hydraulic Operating Table:
Patient-centered and user-friendly as the development basic principles for us, it has made MEDECO become one of the leading manufacturers in China. Close cooperation with the hospital and years of experience have resulted in our tries and improvements of our tables.
Engineered for increasingly complex surgical scenes, DT-12E LUXURY Operating Table comes with extreme loads in any position.
The modular structure enables it to be adapted to mathch the size of the patient and in no time at all it can be equipped for any surgical discipline.
A longitudina shift of up to 310mm makes the DT-12E LUXURY even more versatile.
Maximum and minimum heights of the DT-12E LUXURY, not only suitable for kinds of surgery also for doctors's comfortable working, both seated and standing.
Patameter of Electric Hydraulic Operating Table:
| Model | Length | Width | Tabletop lowest height | Elevation range |
| DT-12E LUXURY | ≥2100mm | 550mm | ≤550mm | ≥500mm |
| Movements | Model: DT-12E LUXURY | |
| Tabletop trendelenburg | Reverse trendelenburg | ≥35º |
| trendelenburg | ≥35º | |
| Lateral Tilt(left and right) | ≥25º | |
| Head plate | Up | ≥40º |
| Down | ≥90º | |
| Flexible | ≥40º | |
| Back plate | Up | ≥80º |
| Down | ≥45º | |
| Leg plate | Electric Up | ≥80º |
| Electric Down | ≥90º | |
| Manual Down | ≥90º | |
| Manual Outward | ≥90º | |
| Kidney Bridge Elevation | 120mm | |
| Horizontal Sliding | 310mm | |
| Power | 110-220v/50-60hz;1.0kW | |
| Flex | ≥225º | |
| Reflex | ≤100º | |
