Product Details:
|
| Model No.: | MEF300 | Length: | 1960mm |
|---|---|---|---|
| Width: | 480mm | Elevation(up/down): | 750mm/950mm |
| Trendelenburg: | ≥22º | Lateral Tilt(left And Right): | ≥15º |
| Specification: | CE | Votage :: | AC110-240v,50/60Hz |
| Brand: | Medeco | Footplate(up/down/outward): | ≥90º |
| Origin: | China | Package: | Standard |
| High Light: | 1960mm Electric Operating Table,AC110v operation room table,480mm Electric Operating Table |
||

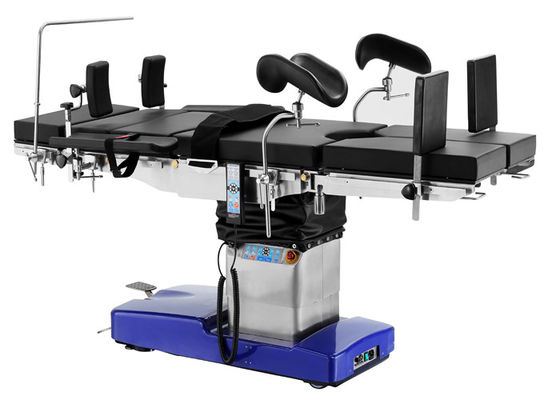

Multifuction Operating Table Electric Operating Table Hydraulic Operation Table
Elecric Hydraulic Operating Table Description :
MEF300 electric operating table can meet various requirements from all departments surgery.
This Operating Table adopts full 304 stainless steel with excellent properties on anti-rust.
The electric operating table is designed to be suitable for both X-ray and C-arm use.
Electric Operating table adopted micro touch remote countrol that enables flexible and smooth adjustments on head plate,back plate and seat plate.
Operating Table is with built-in kidney bridge. Also this Operating Table has features of high automation, low noise, high reliability.
Key parts adopted imported ones, can be regarded as an ideal electric operating table
Patameter for Electric Motor Opearting Table
| Model | Length | Width | Elevation(up/down) |
| MEF100 | 1960mm | 480mm | 750mm/950mm |
| Movements | Model: MEF300 | |
| Tabletop trendelenburg | Reverse trendelenburg | ≥15º |
| trendelenburg | ≥22º | |
| Lateral Tilt(left and right) | ≥15º | |
| Head Plate | Up | ≥45º |
| Down | ≥90º | |
| Back Plate | Up | ≥75º |
| Down | ≥20º | |
| Footplate | Up | ≥90º |
| Down | ≥90º | |
| Outward | ≥90º | |
| Power | 110-220v/50-60hz;1.0kW | |
Standard Accessories:
| Name of accessories | 1 |
| Anaesthetic Screen | 1 |
| Body support | 2 |
| Shoulder Rest | 2 |
| Arm Support | 2 |
| Knee crutch | 2 |
| Matress | 1 |
