Product Details:
|
| Model No.: | DT-12E NEW TYPE | Length: | 1970mm |
|---|---|---|---|
| Width: | 500mm | Height: | 690mm-1100mm |
| Load Capacity: | 250kg | Head Rest(up/down): | 60º/90º |
| Longitudinal Sliding: | 350mm | Votage: | 110~220V 50/60Hz |
| Certification: | CE ISO Certification | Brand: | Medeco |
| Origin: | China | ||
| High Light: | Load 250kg Electric Operating Table,250kg medical surgical bed,690mm Electric Operating Table |
||

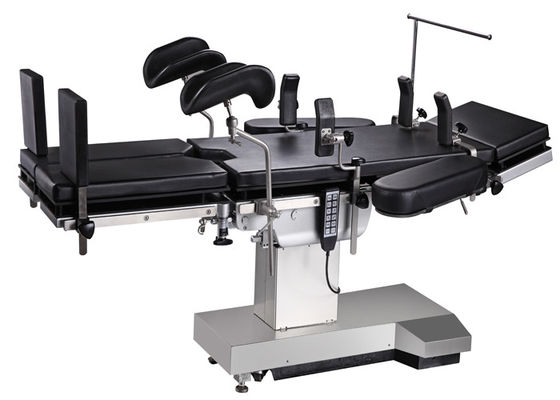

Surgical Bed Electric Hydraulic Operating Table with Remote Control
Hydraulic Operating Table Description:
The operating table consists of head board,back board,seat board left leg board,right leg board and waist board. This combined design not only realizes the operation table rise and fall,left and right,forward and backward,but also realizes the opeartion postion adjustment.
This key parts of Operating table imported from abroad, can be regarded as a ideal electric hydraulic operation table as patient examination talbe or operating room table.
Large-scale elevation makes it easier for C-arm fluoroscopy examination.
The "T-shape" base design makes enough free space for the doctors. High automation, low noise, high reliability.
With built-in kidney bridge suit for kidney operation.
Specification:
| Model | Length | Width | Tabletop Elevation |
| DT-12E new type | 1970mm | 500mm | 690mm~1100mm |
| Movements | Model: DT-12E NEW TYPE | |
| Tabletop trendelenburg | Reverse trendelenburg | 30º |
| trendelenburg | 30º | |
| Lateral Tilt(left and right) | 18º | |
| Head rest | Up | 60º |
| Down | 90º | |
| Back rest | Up | 90º |
| Down | 45º | |
| FootBoard | Up | 15º |
| Down | 90º | |
| Outward | 90º | |
| Kidney Bridge Elevation | 120mm | |
| Longitudinal sliding | 350mm | |
| Power | 110-220v/50-60hz;1.0kW | |
| Load capacity | 250kg | |
| Battery Specification | 12Volt9Ah | |
Standard Accessories:
| Pads | 1 set |
| Leg support | 1 pair |
| Arm support | 1 pair |
| Shoulder support | 1 pair |
| Body support | 1 pair |
| Anesthetic Screen | 1 pc |
| Footboard | 1 pair |
