Product Details:
|
| Model: | II 700/500 LED Operating Light With Camera System | Camera: | Medical HD Camera |
|---|---|---|---|
| IIIuminance For 700 Head: | 40,000Lux -160,000lux | Colour Temperature: | 3500~5000K |
| Illuminance For 500 Head: | 40,000-120,000lux | Certification: | CE,ISO Certification |
| Power Supply: | 110~240V 50/60Hz | Colour Index Ra: | 95 |
| Effective Bulb Service Life: | >50, 000h | Installation Height: | 2.9-3.2meters |
| Medical Grade: | Class II | Delivery: | Within 20days After Received Payment |
| High Light: | 40000Lux Operation Theatre Light,Double Dome LED Examination Lamp,3500k LED Examination Lamp |
||

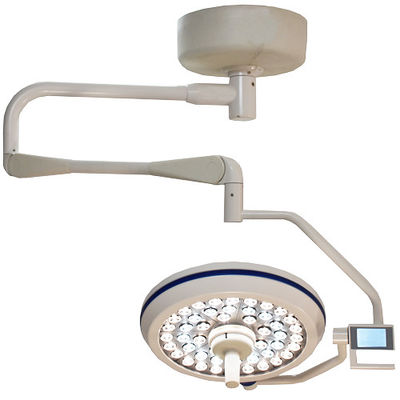

Camera Lamp Operation Single Operating Light Examination Lamp Medical Double Dome Surgical Theatre Light
| MEDECO LED OT LIght HD camera system Parameter | |
| Image Sensor | 1/2.8" CMOS |
| HD Digital Pixel(Resolution) | Imported Sony HD>2 million pixels(1920X1080) |
| Aspect Ratio | 16: 9 |
| Lens | 10X Optical zoom&12X Digital zoom F=1.8-2.5(f=6.3~63mm) |
| Minimum Luminance | Colour 2.0 Lux, Black white 0.1 Lux |
| White Balance | Indoor/fluorescent light/halogen light/LED light Model, signal can be adjust |
| Minimum Object Distance | 800 mm |
| Signal/Noise Ratio | 50 dB |
| Output connection | 1. HD SDI 2. HDMI |
| Medical Monitor | Full HD medical level, 22", SDI Interface |
The standard confirguration for LED 700/500 with camera system operation lamp:
1. Double LED lamp head: 700 lamp head, 500 lamp head
2. Triple ceiling arms(Chinese Round Arm)
3. Triple Balance Arms (Chinese Round Arm)
5. SONY HD Camera System
6. Medical Monitor(Full HD Medical Level, 22inch SDI interface)
7. Four sterilizer handling
