Product Details:
|
Model: | MEY-20L/40L/60L Oxygen Generator | Purity: | 93%(±3%) |
---|---|---|---|
Power: | AC220V And AC110V, 50/60HZ | Small Centralized Oxygen Supply: | Oxygen Supply To Clinics And Small Hospital |
Flow Rate: | 1-20Lmin/1-40Lmin/1-60Lmin | Net Weight: | 95Kgs/160Kgs/245Kgs |
Power Consumption: | ≤1100W/2200W/ 3300W | Feature: | Supply Oxygen To A Small Hospital With 100 Beds |
High Light: | 95Kgs 10 liter portable concentrator,95Kgs homecare oxygen concentrator,1100W 10 liter portable concentrator |

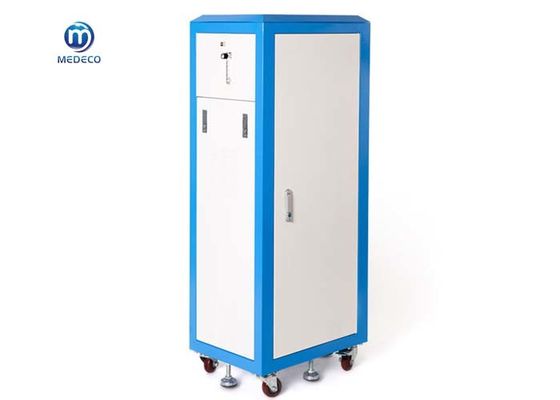

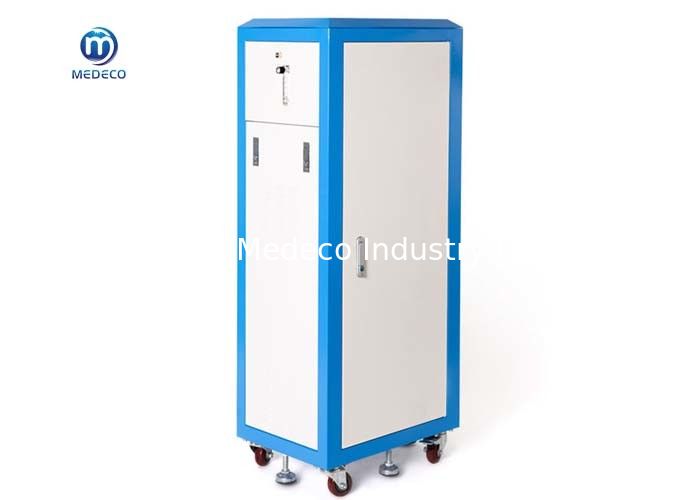

Large Flow Medical Mini Oxygen Concentrator MEY-20 MEY-40 MEY-60
Medical Large Flow Oxygen Concentrator Features:

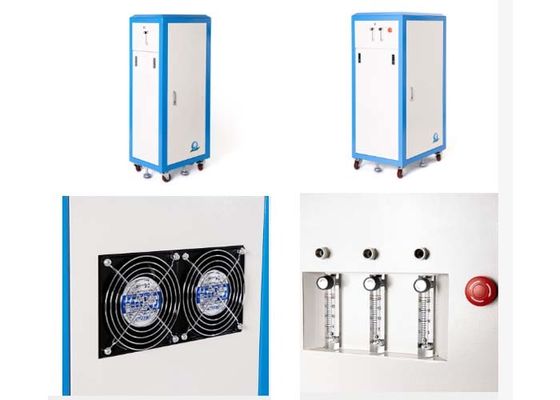

The Large flow oxygen generator emergency switch ensure the safety of machine operation;
Two or more sets of fans ensure the machine's operating temperature and more conducive to heat dissipation
Four big wheels easy to move flexibly
Two sets of filters easy to maintain the oxygen generator,
Optional booster pump: 2-8 Bar
Sufficient flow,high oxygen concentration
Core control technology, special for industry
Reasonable structure design, convenient maintenance
The booster pump and oxygen storage tank can be optional to configure a small central oxygen supply system to centrally supply oxygen to a small hospital with 100 beds
MEY-20L/40L/60L Large Flow Oxygen Concentrator Description&Packing:
*Flow Rate: 1-20Lmin/1-40Lmin/1-60Lmin
*Purity: 93%(±3%)
*Outlet Pressure: 6-10PSI(0.04-0.07Mpa);20PSI(0.14Mpa)
*Power: AC220V and AC110V, 50/60HZ
*Sound Level: ≤60dB
*Power Consumption: ≤1100W/2200W/ 3300W
*Net Weight: 95Kgs/160Kgs/245Kgs
*Size: 860×630×1580mm/
860x630x2120mm
Packing:860*630*1580mm; 203kgs
860*630*2120mm; 294kgs
