Product Details:
|
| Model: | MEY-10-4.0 High Pressure Oxyen Concentrator | Purity: | 93%(±3%) |
|---|---|---|---|
| Power: | ≤1250W | Size: | 460×730×990mm/850x880x790mm |
| Flow Rate: | 1-10Lmin | Power Consumption: | ≤1250W |
| Net Weight: | 85Kgs | Feature: | Connect With Ventilator Or Anaesthesia Machine,etc |
| High Light: | 10LPM oxygen generator concentrator,10LPM oxygen supplying machine,85Kgs oxygen generator concentrator |
||

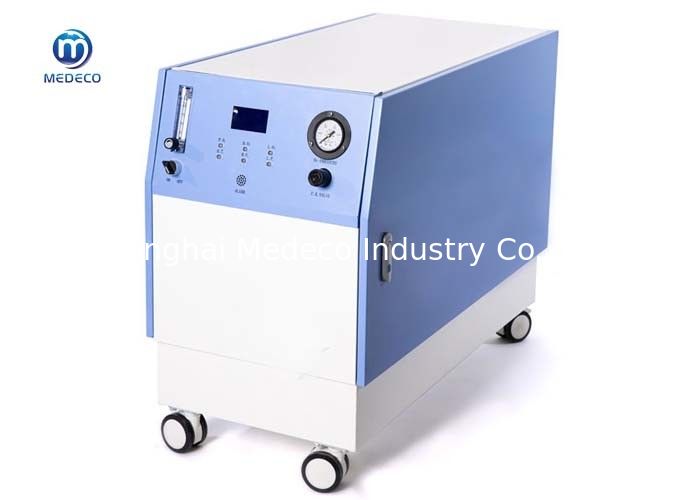

High Pressure Medical Mini 10L Oxygen Concentrator MEY-10-4.0
High Pressure Medical 10L Oxygen Generator Features:
20-60 PSl outlet pressure ensure to be connected with ventilator and the anesthesia machine

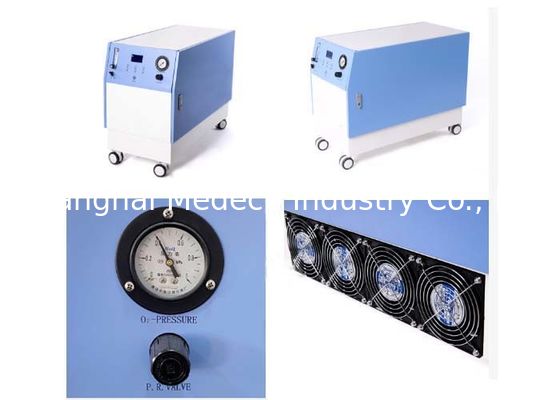

Four sets of fans are more conducive to heat dissipation and ensure the operating temperature of the machine
The metal oxygen outlet supports the connection of various oxygen tubes
Four big wheels easy to move flexibly
Optional connecting with oxygen tank from 200-3000L
Medical Use: Connect with ventilator or anaesthesia machine in small hospitals
Medical Oxygen Concentrator Description&Packing:
*Flow Rate: 1-10Lmin
*Purity: 93%(±3%)
*Outlet Pressure:20-60 PSI (0.14-0.4Mpa)
*Sound Level: ≤ 60dB
*Input Frequency: 50Hz; 60Hz;
*Power Consumption: ≤1250W
*LCD Display: Switch time, operation pressure, present working time, accumulated working time from 10mins to 40hours
*Net Weight: 85Kgs
*Size: 460×730×990mm/850x880x790mm
Packing:1140*550*910mm; 118kgs
1010*920*980mm; 294kgs
*Alarm:
Power failure alarm
high & low pressure alarm
Low oxygen purity alarm: When oxygen purity is>82%,blue light illuminate.
When oxygen purity is <82%,red light illuminate,indicating low purity.
